LED Ground Flood Light ZTGL-1101A/B

Characteristics

Characteristics

General Information

UL LISTED

DLC PREMIUM

FCC

RoHS

Electrical Information

Electrical Class

Class I US

Nominal Voltage

120-277V 50-60Hz

347-480V 50-60Hz

Surge protection (kV)

10

Control protocol(s)

1-10V

Optical Information

LED Color temperature(K)

4000

5000

Color redering index (CRI)

70

Performance

Luminaire output flux (lm)

3600-21600

Power consumption (W)

50-100

Luminaire efficacy - up to (lm/W)

120

Housing and finish

Housing

Die-cast aluminum

Optic

PC

Protector

Glass cover

Tightness level

IP65

Key Features

Construction

  • Rugged die-cast aluminum housing and glass cover.
  •  Housing has direct contact with the driver to help maintain low temperature and long lifespan.
  • Housing is completely sealed against moisture and environmental contaminants.
  • 3G vibration rated per ANSI C136.31.
  • The exterior is protected by a rust-resistant powder coat finish that provides superior resistance to weathering and corrosion.
  • Textured architectural bronze/black powder coat finish.

Electrical

  • Type V(120°) light distribution available.
  • Light engines are available in standard 4000K / 5000K.
  • A range of lumen options available from 3,600 to 21,600 Lumens, replaces up to 300W metal halide.
  • Toughened glass cover provides good protection against impact.
  • Universal 120-277V input voltage, optional 347-480V input voltage.
  • 1-10V dimmable driver.
  • THD: ≤20%, Power Factor: ≥90%.

Controls

  • Optional button photocell for additional energy savings.
  • Optional 10KV SPD.

Installation

  • ZTGL-1101A：1/2 In Threaded knuckle mount;
    ZTGL-1101B：Slip Fitter;

5-year limited warranty

  • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Listings

  • Design Lights Consortium® (DLC 5.1) qualified.
  • IP65(UL listed for wet locations).
  • Rated for ambient operating temperature -40°F to 108°F (-40°C to 40°C).

Dimension

This product is available in 2 sizes to meet different application scenarios.

Photometricsion

Each point on the light distribution curve indicates the luminous intensity of the lamp in this direction, and the angle of the lamp can also be known.

Accessory

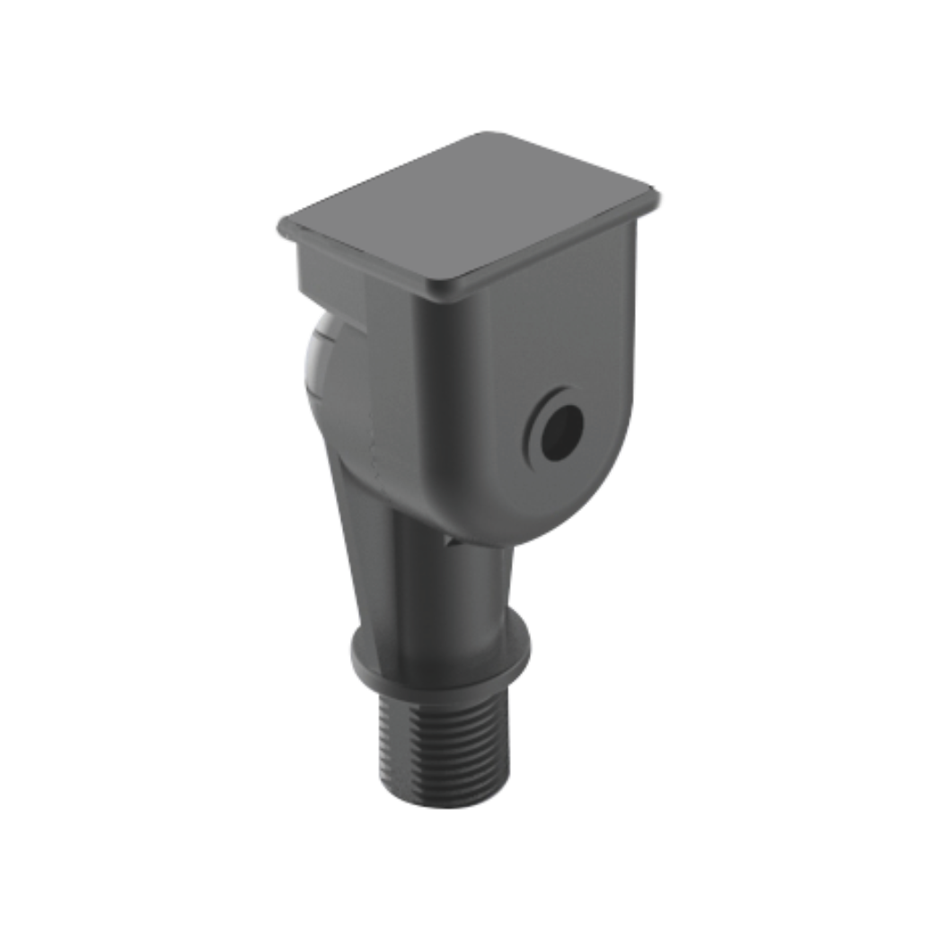

Slip Fitter Installation

Slip Fitter Installation

Trunnion Installation kit-I

Button photo cell
