Architectural Flood Light ZTGL-1400

Characteristics

General Information

Compliance

FCC

RoHS

CE

Electrical Information

Electrical Class

Class I US

Class I EU

Class III US

Class III EU

Nominal Voltage

DC12V

120V 50-60Hz

120-277V 50-60Hz

220-240V 50-60Hz

Surge protection (kV)

10

Control protocol(s)

0-10V

Optical Information

LED Color temperature(K)

1800-6500

RGBW

Color redering index (CRI)

70

Performance

Luminaire output flux (lm)

450-7200

Power consumption (W)

6-96

Luminaire efficacy - up to (lm/W)

100

Housing and finish

Housing

Die-cast aluminum

Optic

PC

Protector

Glass cover

Tightness level

IP65

Key Features

Construction

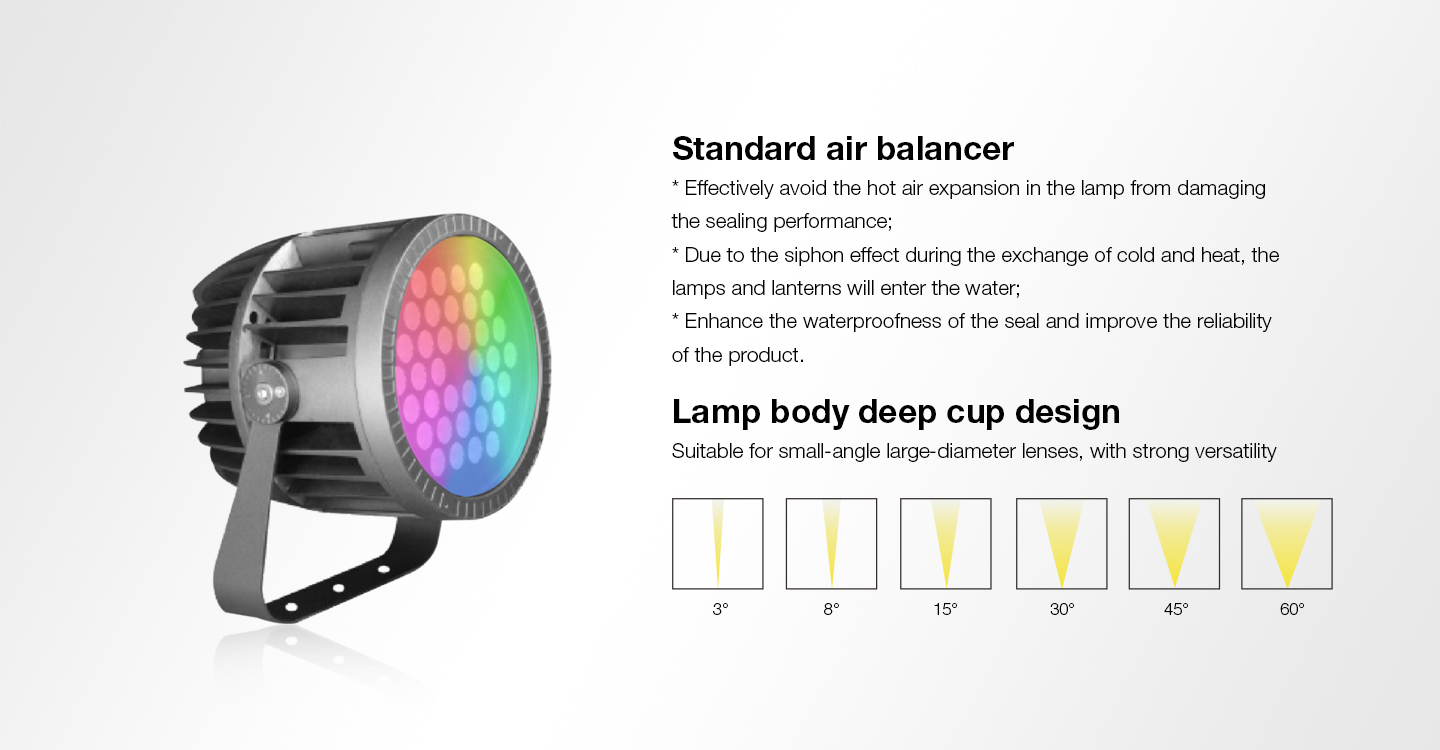

  • Rugged die-cast aluminum housing and pc lens.
  • Housing has direct contact with the driver to help maintain low temperature and long lifespan.
  • Housing is completely sealed against moisture and environmental contaminants.
  • 3G vibration rated per ANSI C136.31.
  • The exterior is protected by a rust-resistant powder coat finish that provides superior resistance to weathering and corrosion.
  • Textured architectural bronze/black powder coat finish.

Electrical

  • 7H6V light distribution available.
  • Light engines are available in standard 1800-6000K or RGBW and CRI70 configurations.

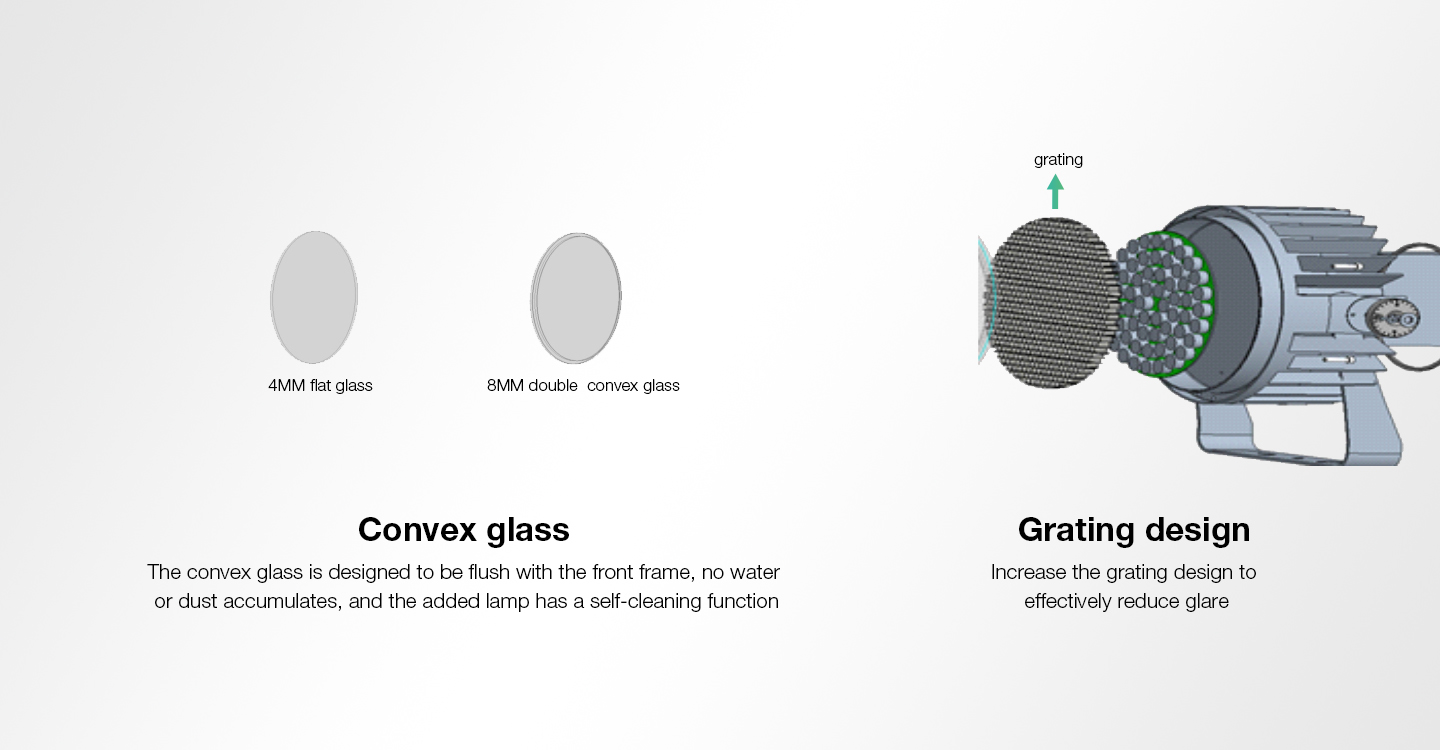

  • Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing.
  • 0-10V dimmable driver.
  • THD: ≤20%, Power Factor: ≥90%.

Controls

  • Optional 10KV SPD.
  • Optional button photocell.
  • Optional motion sensor.
  • Control: DMX512/RDM(wireless/DALI/0-10V available on request).
  • DMX channel: FW(1ch), TW(2chs), RGBW(4chs).

Installation

  • 1/2 In Threaded knuckle mount, Yoke;

Lifespan

  • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

5-year limited warranty

  • IP65(UL listed for wet locations).
  • Rated for ambient operating temperature -40°F to 108°F (-40°C to 40°C).

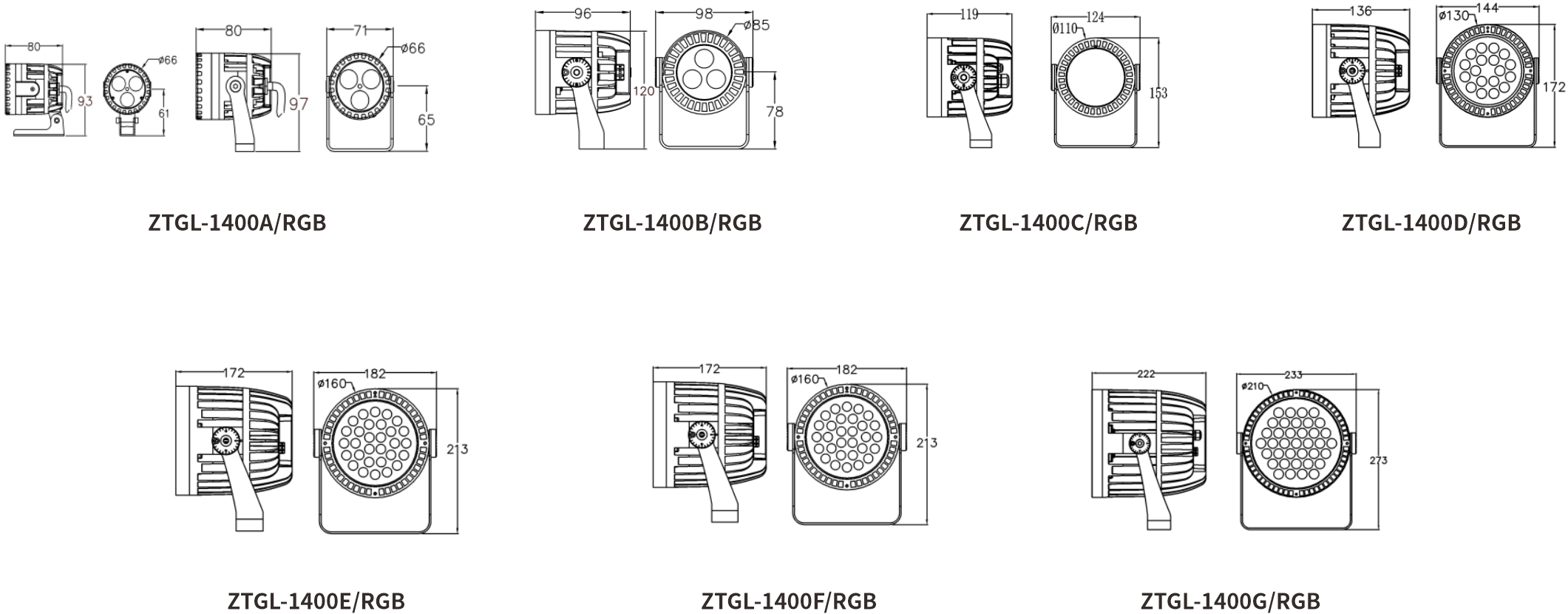

Dimension

This product is available in 7 sizes to meet different application scenarios.

Download

Data Sheet-US

ZTGL-1400-US
Download

Data Sheet-EU

ZTGL-1400-EU
Download
